Moving and processing large round bales was never easier.
The Bale Mover - Feeder that makes all others
obsolete!
|
- Hauls and feeds six bales
- Two and Four bale versions available
- Straight PTO, no offsets
- Makes rough hay more palatable by removing dust, mildew and mold
|
|
Simple and easy processor loading.
|
- Mover bed raises up chains pull bales forward.
- Mover rails lower and hide between rollers.
- Flail located in the center of machine.
- Four rollers turn bale in processor.
|
|
|

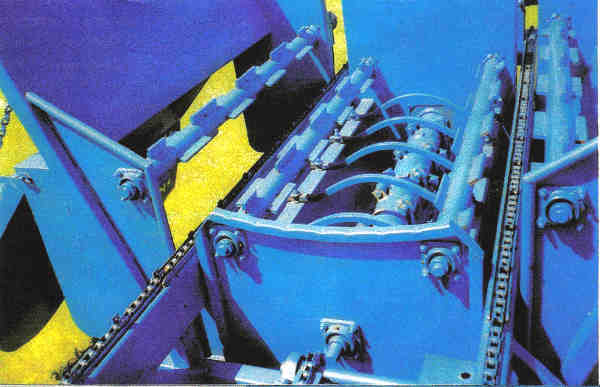

Click to view a larger picture of the hopper.
|
No feeder chains to wear out
Built with square tubing for maximum strength and durability.
Heavy built to outlast all others 7960# Feeder-Mover only.
|
|
Bale retrieving is made possible by
removing feeder and installing arm.
Add a liquid feed pump to
enhance rough hay and save
on the cake wagon.
|
Tractor Requirements:
100 HP 1000 RPM PTO, 1 Hydraulic valve
Specifications:
1/4" x 3" x 8" x 34' tubing for loading rails
1/4" x 4" x 6" tubing with 1/2" x 6" web for tongue
4 - 18 cu. inch hydraulic motors turn the bale
1 - 32 cu. inch hydraulic motor loads and unloads bales
3 spool valve with joystick
EXTRA heavy PTO rated at 166 hp at 1000 RPM
Rotor cylinder length 72" and diameter 25 1/2" with 30 flails
4 - 6000# axles and 8 bolt hubs with 11L x 15" 8 ply tires
Length - 37' Width - 8' Weight - 7960 lbs.
Capacity - 6 - 5' long x 6' high bales
|
